CLIP - Intuitively and Exhaustively Explained

Creating strong image and language representations for general machine learning tasks.

“Contrasting Modes” by Daniel Warfield using MidJourney. All images by the author unless otherwise specified.

In this post you’ll learn about “contrastive language-image pre-training” (CLIP), A strategy for creating vision and language representations so good they can be used to make highly specific and performant classifiers without any training data. We’ll go over the theory, how CLIP differs from more conventional methods, then we’ll walk through the architecture step by step.

CLIP predicting highly specific labels for classification tasks it was never directly trained on. Source

Who is this useful for? Anyone interested in computer vision, natural language processing (NLP), or multimodal modeling.

How advanced is this post? This post should be approachable to novice data scientists. Some of the later sections are a bit more advanced (particularly when we dig into the loss function).

Pre-requisites: Some cursory knowledge of computer vision and natural language processing.

The Typical Image Classifier

When training a model to detect if an image is of a cat or a dog, a common approach is to present a model with images of both cats and dogs, then incrementally adjust the model based on it’s errors until it learns to distinguish between the two.

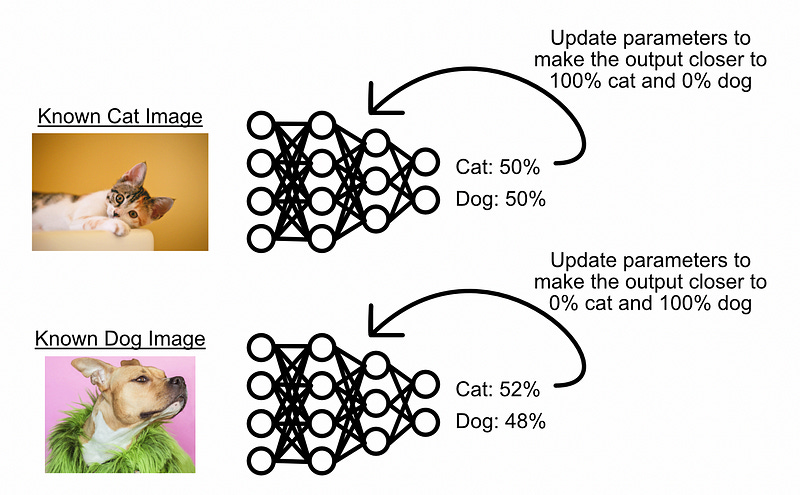

A conceptual diagram of what supervised learning might look like. Imagine we have a new model which doesn’t know anything about images. We can feed it an image, ask it to predict the class of the image, then update the parameters of the model based on how wrong it is. We can then do this numerous times until the model starts performing well at the task. I explore back propagation in this post, which is the mechanism which makes this generally possible.

This traditional form of supervised learning is perfectly acceptable for many use cases, and is known to perform well in a variety of tasks. However, this strategy is also known to result in highly specialized models which only perform well within the bounds of their initial training.

Comparing CLIP with a more traditional supervised model. Each of the models were trained on and perform well on ImageNet (a popular image classification dataset), but when exposed to similar datasets containing the same classes in different representations, the supervised model experiences a large degradation in performance, while CLIP does not. This implies that the representations in CLIP are more robust and generalizable than other methods. Source

To resolve the issue of over-specialization, CLIP approaches classification in a fundamentally different way; by trying to learn the association between images and their annotation through contrastive learning. We’ll explore what that means in the next section.

CLIP, in a Nutshell

What if, instead of creating a model that can predict if an image belongs to one of some list of classes, we create a model which predicts if an image belongs to some arbitrary caption? This is a subtle shift in thinking which opens the doors to completely new training strategies and model applications.

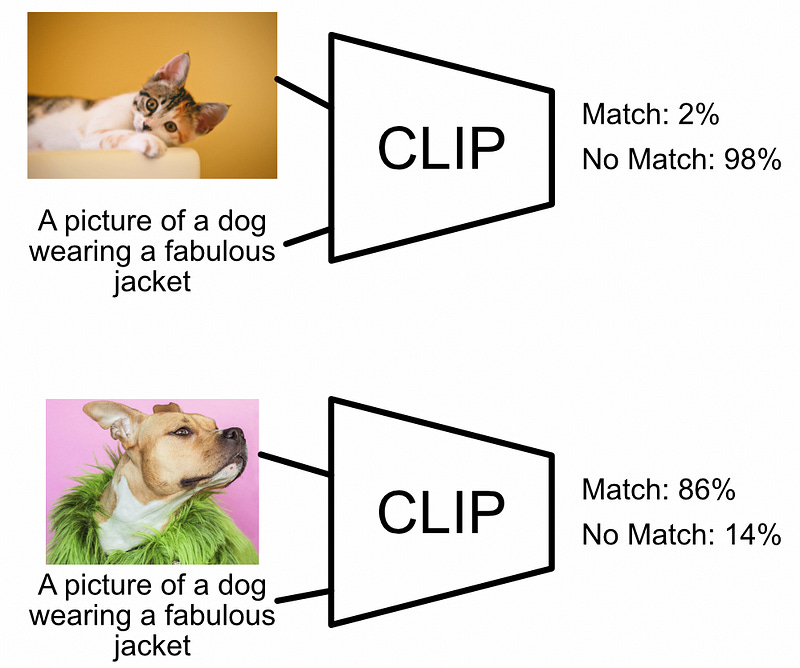

The end result of CLIP, a model which can predict if some arbitrary text belongs with an arbitrary image

The core idea of CLIP is to use captioned images scraped from the internet to create a model which can predict if text is compatible with an image or not.

An example of CLIP applied to various data sets it hasn’t seen before. While not completely perfect (it predicted the wrong type of aeroplane), CLIP displays a remarkable ability to understand a variety of different classification problems out of the box. Source

CLIP does this by learning how to encode images and text in such a way that, when the text and image encodings are compared to each other, matching images have a high value and non-matching images have a low value. In essence, the model learns to map images and text into a landscape such that matching pairs are close together, and not matching pairs are far apart. This strategy of learning to predict if things belong or don’t belong together is commonly referred to as “contrastive learning”.

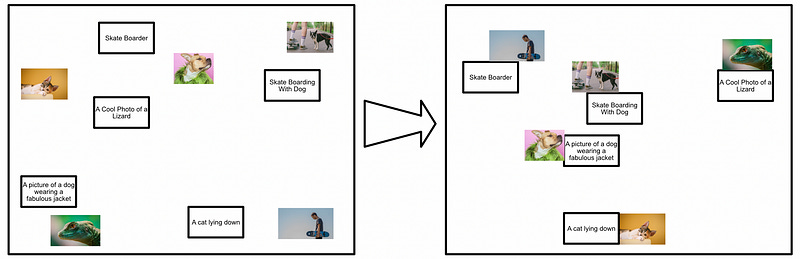

A conceptual diagram of contrastive learning from the perspective of CLIP. In essence, we put every image and every caption in some arbitrary space. We then learn to place those images and captions within that space such that matching pairs are close together, and non-matching pairs are far apart.

In CLIP, contrastive learning is done by learning a text encoder and an image encoder, which learns to put an input into some position in a vector space. CLIP then compares these positions during training and tries to maximize the closeness of positive pairs, and minimize the closeness of negative pairs.

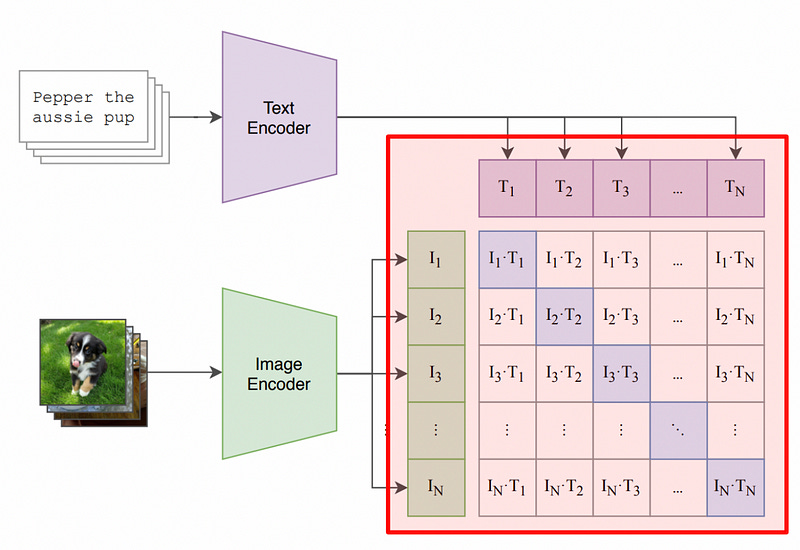

A diagram of CLIP. We take a bunch of images and their corresponding description and learn how to encode them such that matching values are large, and not matching values are small. In the diagram above the blue highlighted region corresponds to positive matching pairs, and the rest of the matrix corresponds to negative pairs which need to be minimized. Source

The general strategy CLIP employs allows us to do all sorts of things:

• We can build image classifiers by just asking the model which text, like “a photo of a cat” and “a photo of a dog” are most likely to be associated with an image

• We can build an image search system which can be used to find the image which is most related to input text. For instance, we can look at a variety of images and find which image is most likely to correspond to the text “a photo of a dog”

• We can use the image encoder by itself to extract abstract information about an image which is relevant to text. The encoder can position images in space dependent on the content of the image, that information can be used by other machine learning models.

• We can use the text encoder by itself to extract abstract information about text which is relevant to images. The encoder can position text in space dependent on the entire content of the text, that information can be used by other machine learning models.

Recall that we’re learning to position images and text in such a way that similar things are close together. In doing this process we’ve found a way to put both text and images in meaningful locations. To do this effectively we have to build encoders which have a strong understanding of images and text. We need to be able to understand “catness” in an image, or understand that the word “fabulous” is modifying the word “jacket”. As a result, the encoders used in CLIP can be used in isolation to be able to extract meaning from certain inputs.

While zero-shot classification is pretty cool (zero-shot meaning the ability to perform well on an unseen type of data. For instance, asking the model “is this person happy” when it was never trained explicitly to detect happiness), extracting and using just the text or image encoder within CLIP has become even more popular. Because CLIP models are trained to create subtle and powerful encodings of text and images which can represent complex relationships, the high quality embeddings from the CLIP encoders can be co-opted for other tasks; I have an article which uses the image encoder from CLIP to enable language models to understand images, for instance:

Visual Question Answering with Frozen Large Language Models

So, now we have a high level understanding of CLIP. Don’t worry if you don’t completely understand; in the next section we’ll break down CLIP component by component to build an intuitive understanding of how it functions.

The Components of CLIP

CLIP is a high level architecture which can use a variety of different sub components to achieve the same general results. We’ll be following the CLIP paper and break down one of the possible approaches.

The Text Encoder

The Text Encoder within CLIP, source

At its highest level, the text encoder converts input text into a vector (a list of numbers) that represents the text’s meaning.

The purpose of a text encoder, essentially

The text encoder within CLIP is a standard transformer encoder, which I cover intuitively and exhaustively in another post. For the purposes of this article, a transformer can be thought of as a system which takes an entire input sequence of words, then re-represents and compares those words to create an abstract, contextualized representation of the entire input. The self attention mechanism within a transformer is the main mechanism that creates that contextualized representation.

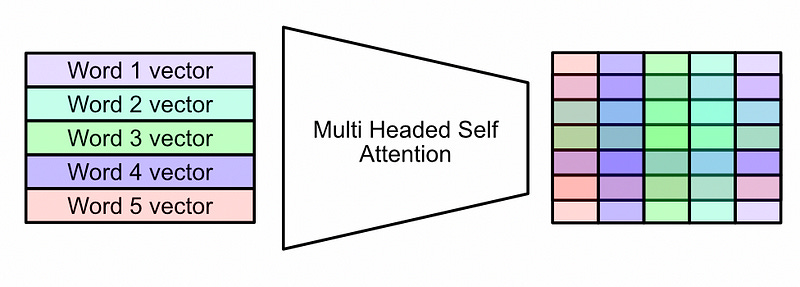

Multi Headed Self Attention, the main operation in a transformer, takes an input sequence of words and converts them into an abstract representation. The end result can be conceptualized as containing “contextualized meaning” rather than a list of words. If you don’t know what a word vector embedding is, I cover them in this post.

One modification CLIP makes to the general transformer strategy is that it results in a vector, not a matrix, which is meant to represent the entire input sequence. It does this by simply extracting the vector for the last token in the input sequence. This works because the self attention mechanism is designed to contextualize each input with every other input. Thus, after passing through multiple layers of self attention, the transformer can learn to encode all necessary meaning into a single vector.

A conceptual diagram of CLIP’s text encoder; multiple multi-headed self attention layers manipulating the output into a final vector which represents the entire input. This final vector is used to represent the text input as a point in space, which is ultimately used to calculate the “closeness” between a caption and an image.

Feel free to refer to my article on transformers for more in-depth information. In the next section we’ll talk about Image encoders, which convert an image into a representative vector.

Transformers — Intuitively and Exhaustively Explained

The Image Encoder

The Image Encoder within CLIP, source

At its highest level, the image encoder converts an image into a vector (a list of numbers) that represents the images meaning.

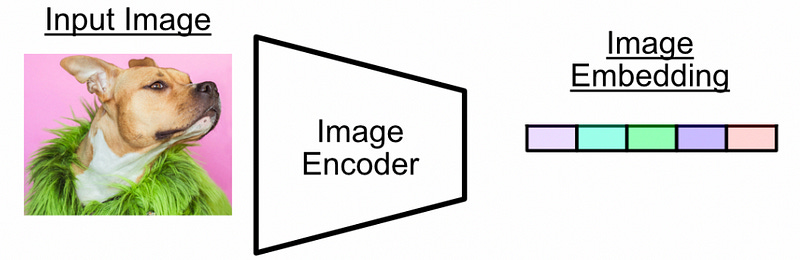

The purpose of an image encoder, essentially

There are a few approaches to image encoders which are discussed in the CLIP paper. In this article we’ll consider ResNET-50, a time tested convolutional approach which has been applied to several general image tasks. I’ll be covering ResNET in a future post, but for the purposes of this article we can just think of ResNET as a classic convolutional neural network.

A convolutional neural network is a strategy of image modeling which filters an image with a small matrix of values called a kernel. It sweeps the kernel through the image and calculates a new value for each pixel based on the kernel and the input image.

A conceptual diagram of transforming an image via a Kernel. The kernel is placed in a certain spot within an image and multiplies the surrounding pixels by some value. It then adds those multiplied values together to calculate a new value for the image at that location. The values of each kernel are learnable, and a convolutional network uses many kernels. The end result is a network which learns to re-represent an input numerous different ways to extract meaning from an image.

The whole idea behind a convolutional network is, by doing a combination of convolutions and downsampling of an image, you can extract more and more subtle feature representations. Once an image has been condensed down to a small number of high quality abstract features, a dense network can then be used to turn those features into some final output. I talk about this more in depth in another post, specifically the role of the dense network at the end, called a projection head.

A classic convolutional architecture from the YOLO paper, an landmark object detection model. Each of these boxes describe an input images horizontal and vertical size, as well as their “depth”, in terms of number of features. The input image is an RGB image, so it has a depth of 3. The following box has a “depth” of 192, which corresponds to having 192 kernels extracting different information from the input image. By extracting more and more features, and downsampling the image via maxpooling, the network distills the image into an abstract representation which is trained to hold some meaning about the image. Source

From the perspective of CLIP, the end result ends up being a vector which can be thought of as a summary of the input image. This vector, along with the summary vectors for text, are then used in the next section to construct a multi-modal embedding space, which we’ll discuss in the next section.

The image encoder used in CLIP in a nutshell. The image encoder converts an image into an abstract set of features with a convolutional network, then uses a dense, fully connected neural network to create the final output. In this case, the final output vector can be thought of as a summary of the entire input

The Multi-Modal Embedding Space, and CLIP Training

The component of the CLIP training process which jointly aligns the embedding for both text and images, source

In the previous two sections we went over modeling strategies which can summarize text and images into vectors. In this section we’ll go over how CLIP uses those vectors to build strong image and language representations.

The idea of summarizing something complicated into an abstract vector is generally referred to as an “embedding”. We “embed” things like images and text into a vector as a way to summarize their general meaning.

The image and text encoder “embedding” each input. Note: the length of these embeddings is typically very long, maybe 256 elements long.

We can think of these embedding vectors as representing the input as some point in high dimensional space. For demonstrative purposes we can imagine creating encoders which embed their input into a vector of length two. These vectors could then be considered as points in a two dimensional space, and we could draw their positions.

an example of CLIP before it’s trained, with 2 dimensional embeddings for demonstrative purposes. Each of the images is passed through the image encoder to create a vector of length 2, and each of the input text is passed through the text encoder to create a vector of length 2

We can think of this space as the Multi-Modal Embedding Space, and we can train CLIP (by training the image and text encoders) to put these points in spots such that positive pairs are close to each other.

an example of CLIP after it’s trained, with 2 dimensional embeddings for demonstrative purposes. Notice how, once the encoders are trained, positive pairs end up close together

There are a lot of ways to define “close” in machine learning. Arguably the most common approach is cosine similarity, which is what CLIP employs. The idea behind cosine similarity is that we can say two vectors are similar if the angle between them is small.

If calculating similarity based on cosine similarity, the angle between A and B is small, and thus A and B are similar. C would be considered very different from both A and B

The term “cosine” comes from the cosine function, a trigonometry function which calculates the ratio of the adjacent leg of a right triangle with the hypotenuse based on some angle. If that sounds like gibberish, no big deal: if the angle is small between two vectors, the cosine between the two vectors will be close to 1. If the vectors are 90 degrees apart, the cosine will be zero. If the vectors are pointing in opposite directions, the cosine will be -1. As a result, with cosine, you get big numbers when the vectors point in the same direction, and you get small numbers when they don't.

A conceptual diagram for how the cosine wave (the wave on the bottom) relates to the angle within a right triangle. It’s really not that important to understand the cosine function completely for this article, only that it’s biggest when the angle between things is 0, and smallest when things point in opposite directions. If you’re curious about learning more about trigonometry and waves, you can refer to this article I wrote on how frequency analysis relates to machine learning

The cosine of the angle between two vectors can be calculated by measuring the angle between them and then passing that angle through the cosine function. Printing out all the vectors and measuring the angle between them using a protractor might slow down our training time, though. Luckily, we can use the following identity to calculate the cosine of the angle between two vectors:

source

If you were already daunted by math, you might feel even more daunted now. But I’ll break it down:
